Product Description

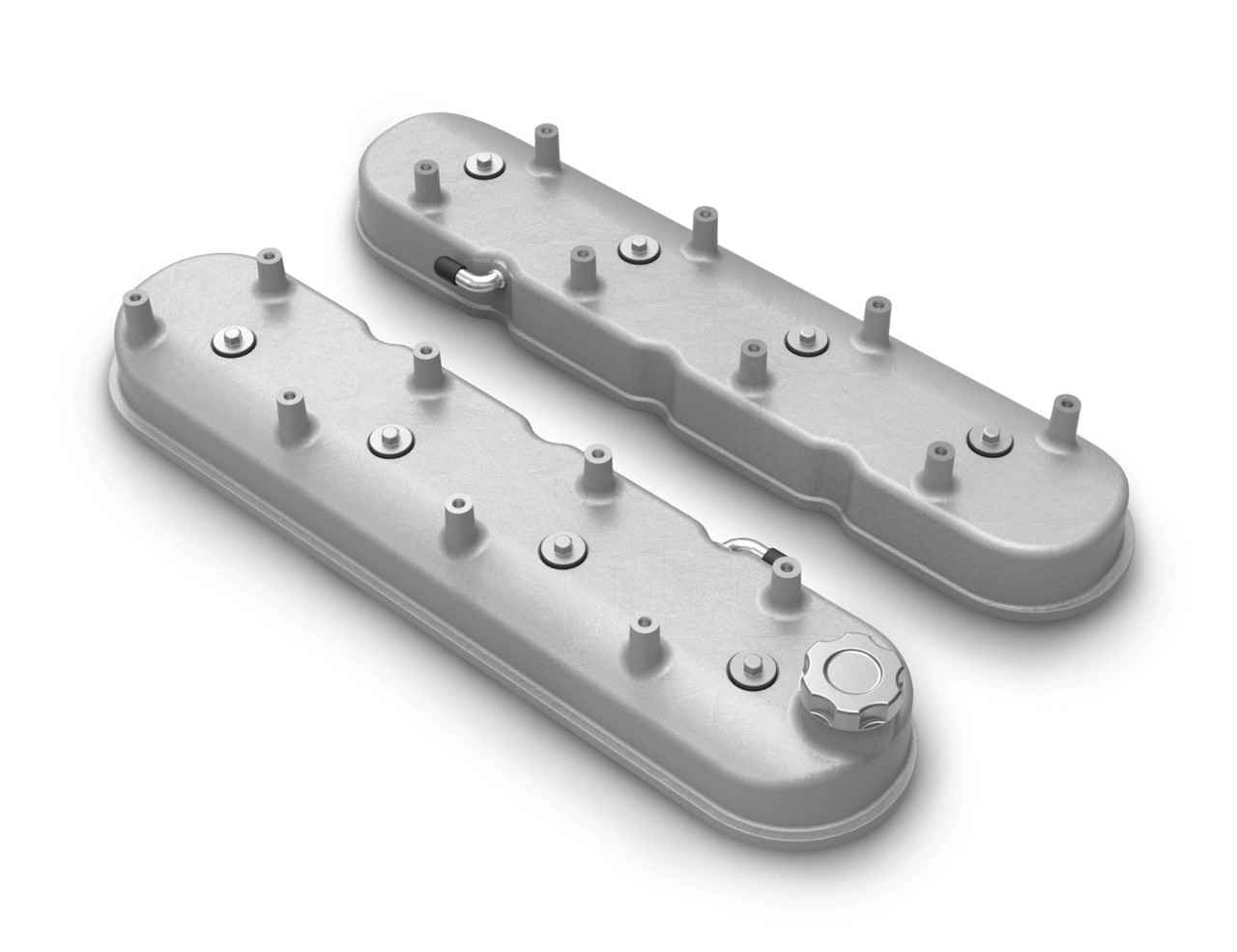

Holley Tall LS Valve Covers with Coil Mounts - Natural Cast Aluminum - 4.8L 5.3L 5.7L 6.0L 6.2L LS1 LS3 LQ4 LM7 LC9 L96
Fits 1999-2013 LS Based Engines 4.8L 5.3L 5.7L 6.0L 6.2L 7.0L
Compatible with D510C and D514A coils ONLY. Typically found on 2007-later engines.
Holley's tall LS valve covers are the latest addition to our extensive line of LS engine components that will add a custom touch to your engine bay and help you to stand out from the crowd. These valve covers were designed to add an additional 0.54" of internal clearance over factory height valve covers. The valve covers retain Holley's signature integrated angled coil mounts, and the hi-tech look and performance of coil-on-cover applications. The Holley tall LS valve covers fit LS1, LS2, LS3, LS6, LS7, etc., engines using coils with a standard LS3 bolt spacing of 72mm. These valve covers come ready for installation with an OE style baffle and ventilation system, lengthened factory style mounting hardware, plus a billet aluminum oil fill cap.
Features:
- Angled coil mounts deliver a smooth clean look.
- Retain the high-tech look and performance of “coil on cover”.
- Eliminates unsightly OE style coil brackets.
- Billet aluminum oil fill cap.
- Reuses original gaskets and coil bolts.
- Fits all LS engines and coils with 72mm bolt spacing.
- Designed to add an additional 0.54" of internal clearance over factory height valve covers.
- Holley’s LS covers use proven OE style baffles and vents.
Quantity: 2 Valve Covers (1 pair)
Fits: LS1 LS2 LS3 LS6 L99 LSA LS7 L92 L9H L94 L76 L77 LY6 L96 LFA LZ1 LY5 LMG LMF LH6 LC9 LY2 L20 L33 LQ4 LQ9 LR4 LM7 L59 LS4 LH8 LH9
Specs:
- Application: GM LS Engines
- Baffle Included: Yes
- Bolt Pattern: Center Bolt
- Breather Cap Included: No
- Breathers Included: No
- Coil Mounting Studs: Yes
- Coil Options: With Coil Mounts
- Color: Natural Cast Aluminum
- Construction: Die Cast Aluminum
- Gaskets Included: No
- Grommets Included: Yes
- Height: Tall
- Hold Down Tabs: No
- Logo: None
- Mounting Hardware: Yes
- Oil Fill: Yes
- Oil Fill Cap Included: Yes
- Overall Height: 3"
- Quantity: Pair
- Valve Cover Gasket Included: No
- Warranty: Manufacturer's Limited 90 Day Warranty
Instructions: 241-110 Instruction Sheet
