Product Description

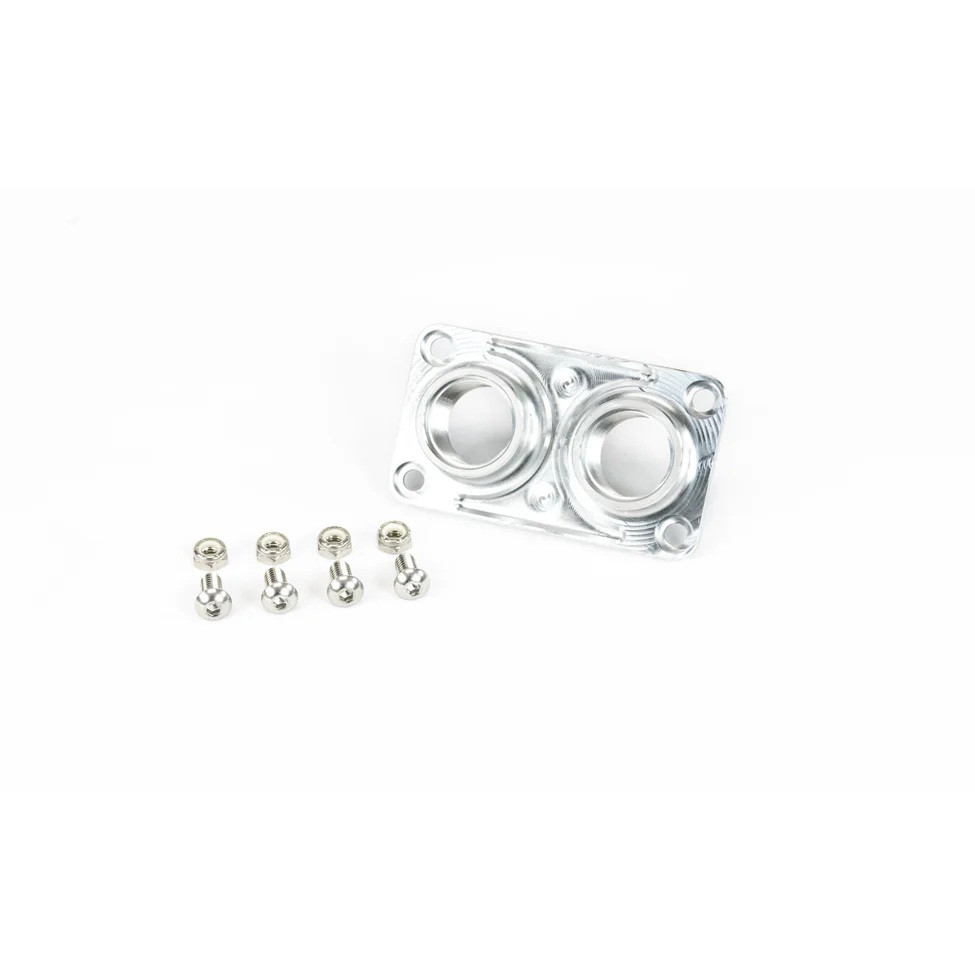

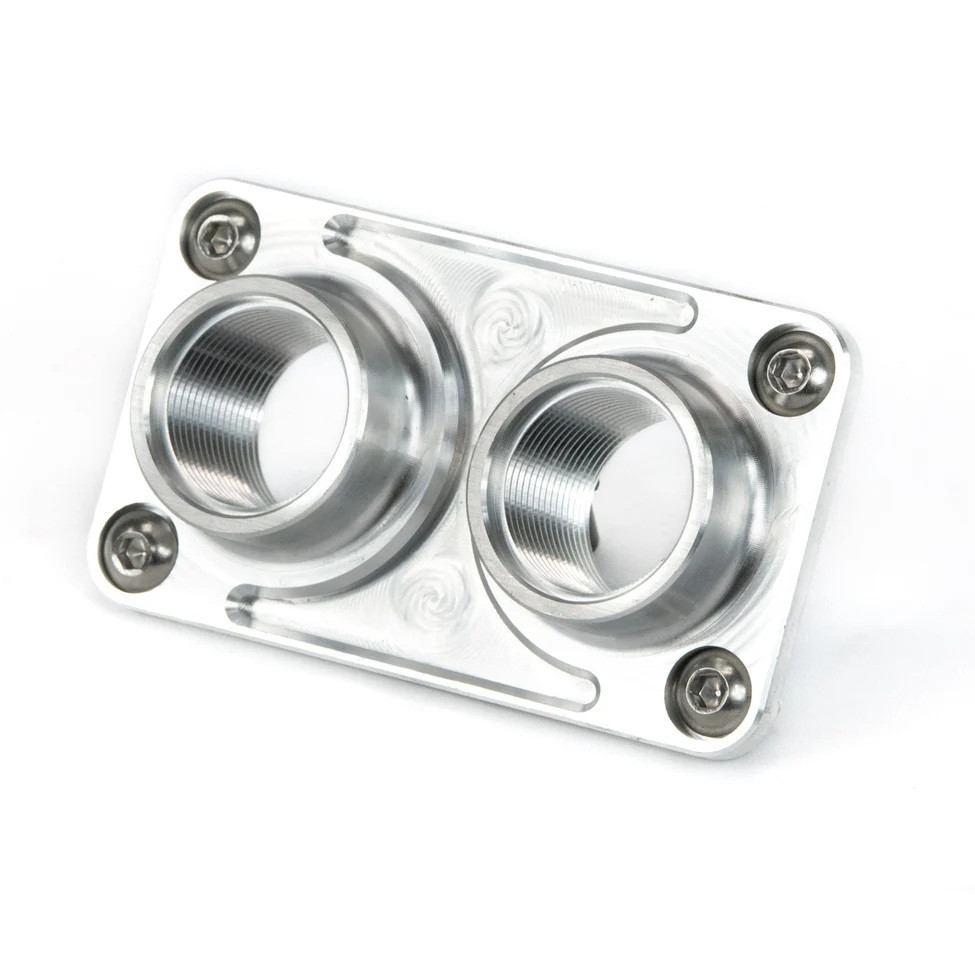

Motion Raceworks Billet Intercooler Water Pass Thru 12AN 16AN 20AN Hose Barb
Racing Use Only, Not Legal for Road Use
Inspired by a need we found by building our own cars. This bulkhead pass-thru makes plumbing lines through a rear firewall or front firewall VERY easy as well as CLEAN! Those pesky large bulkhead nuts are difficult to tighten in car and tend to come loose easily. Ports are -16ORB pattern.

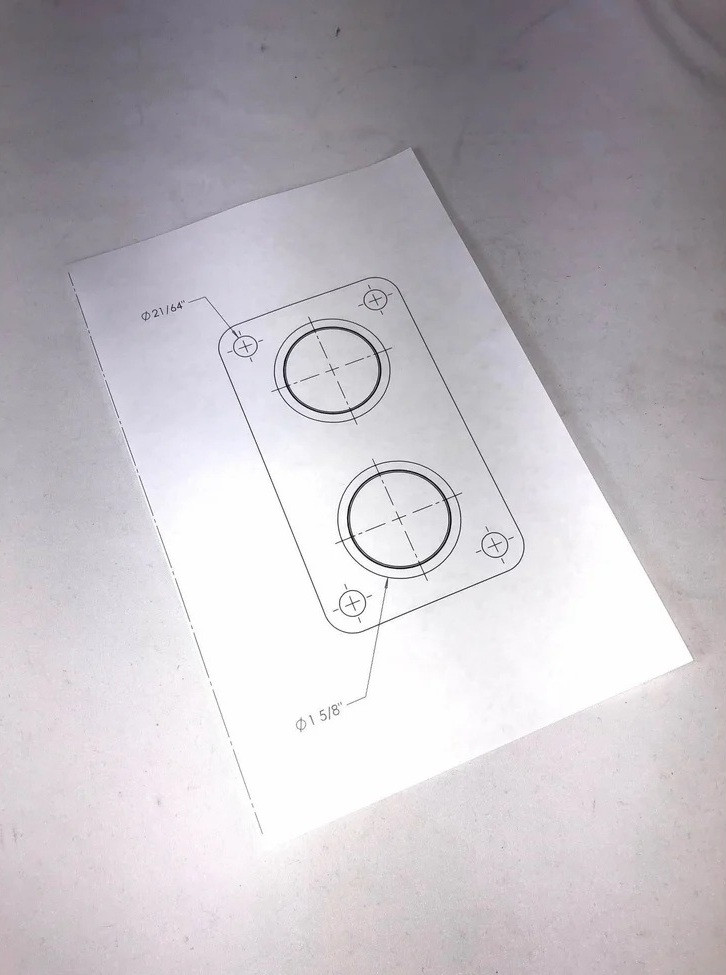

To install, simply drill 2, 1.625" holes with a standard 1 5/8" hole saw according to the pattern sheet provided. Drill 4 mounting holes in the corners.

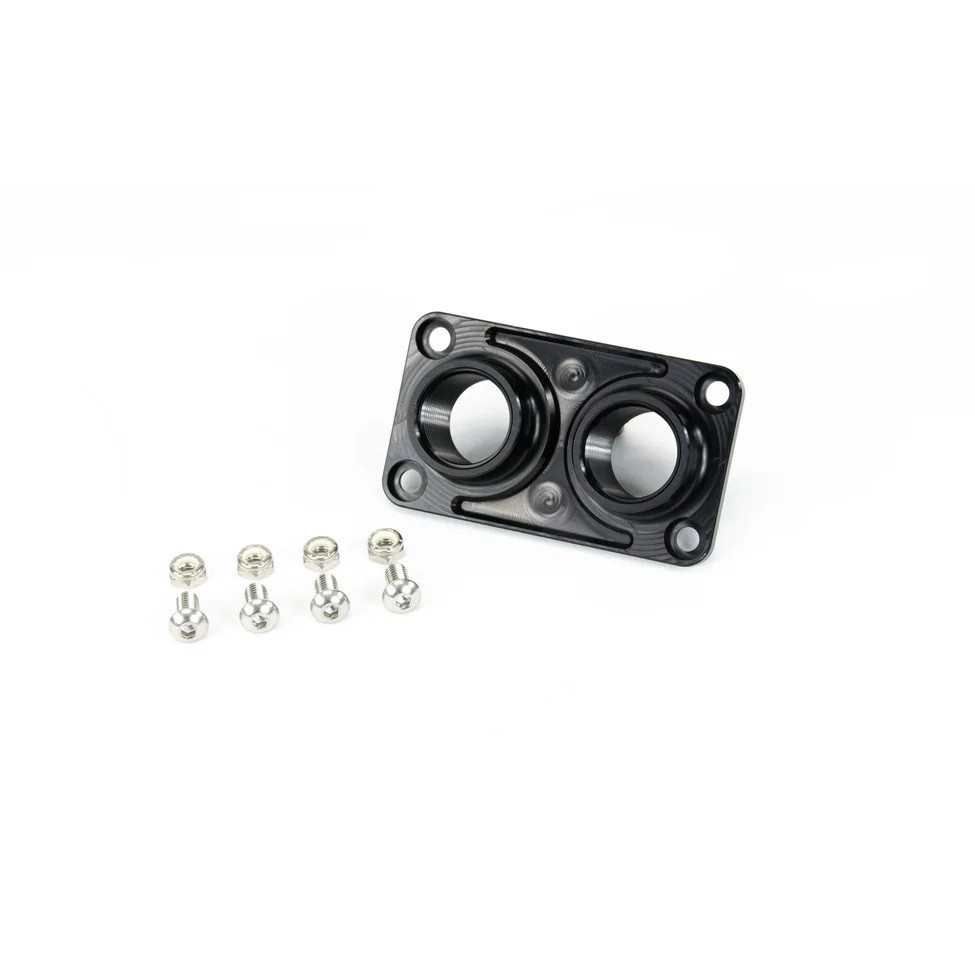

Choose Bare Billet (P/N 17-10001) or Black Anodized (P/N 17-10001BLK).
The overall outer dimensions on this plate are 4.75" X 2.75".
**MADE IN THE USA**
Included:

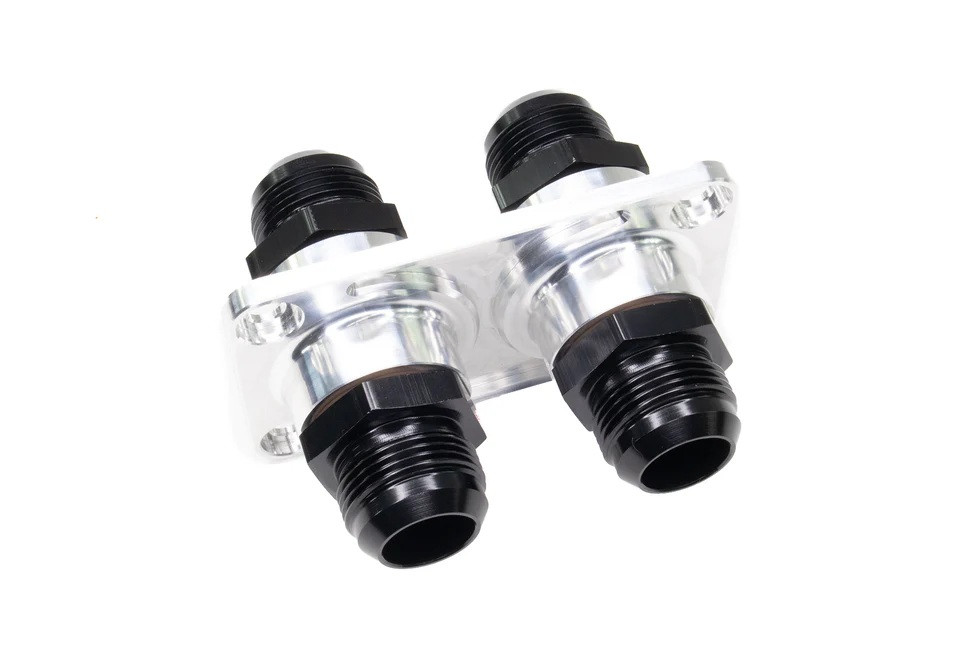

- Pass-Thru & Mounting Hardware (Optional ORB to AN and ORB to Hose Barb Fittings can be included.)
