Product Description

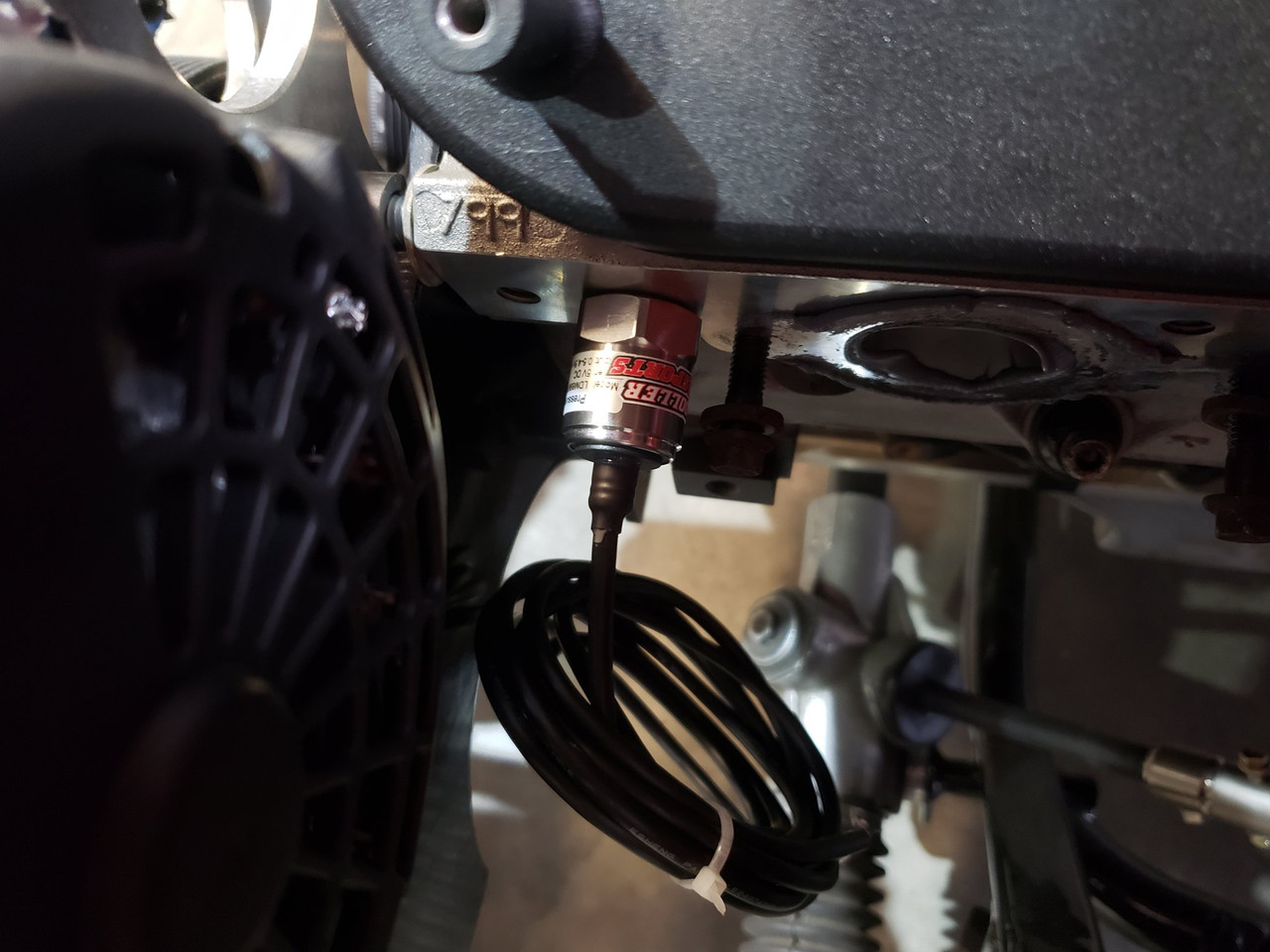

Lowdoller Motorsports Oil Pressure & Temperature Combo 100 PSI / 500°F PN: 899403
COMPATIBLE WITH HOLLEY, FUELTECH, HALTECH, ETC.
- LDM899TP100 combo sensor.
- Outputs 0.5V to 4.5V signal for PSI.
- 0 to 100 psi and 0-500°F in one sensor!
- Same exact size as the standard 100 psi sensor.
- 1/8" NPT
- 8.5 feet flying lead. (Enough extra wire to cut and add connector wherever it is convenient.) Highly recommend adding a Deutsch DTM connector.
- Ultra compact.
- ASIC Chip
- Diffused silicon oil filled.
- Shock/vibration resistant.
- Corrosion resistant.
- 0.5% accuracy for full scale.
Wiring:
- Red = 5 Volt Supply
- Black = Negative Sensor Ground
- Yellow = Pressure Signal
- White= Negative Sensor Ground
- Green= Signal wire to ECU
|
100 PSI: |
|
|
Voltage |
PSI |
|
0.50 |
0 |
|
0.77 |
6.7 |
|
1.03 |
13.3 |
|
1.30 |
20 |
|
1.57 |
26.7 |
|
1.83 |
33.3 |
|
2.10 |
40 |
|
2.37 |
46.7 |
|
2.63 |
53.3 |
|
2.90 |
60 |
|
3.17 |
66.7 |
|
3.43 |
73.3 |
|
3.70 |
80 |
|
3.97 |
86.7 |
|
4.23 |
93.3 |
|
4.50 |
100 |
|
Temp Sensor: |
|
|
Degrees F |
Ohms. |
|
-40 |
84.27 |
|
-4 |
89.54 |
|
32 |
100 |
|
68 |
107.79 |
|
104 |
115.54 |
|
140 |
123.24 |
|
176 |
130.9 |
|
212 |
138.51 |
|
248 |
146.07 |
|
284 |
153.585 |
|
320 |
161.05 |
|
356 |
168.48 |
|
392 |
175.86 |
|
428 |
183.19 |
|
464 |
190.47 |
|
500 |
197.71 |
