Product Description

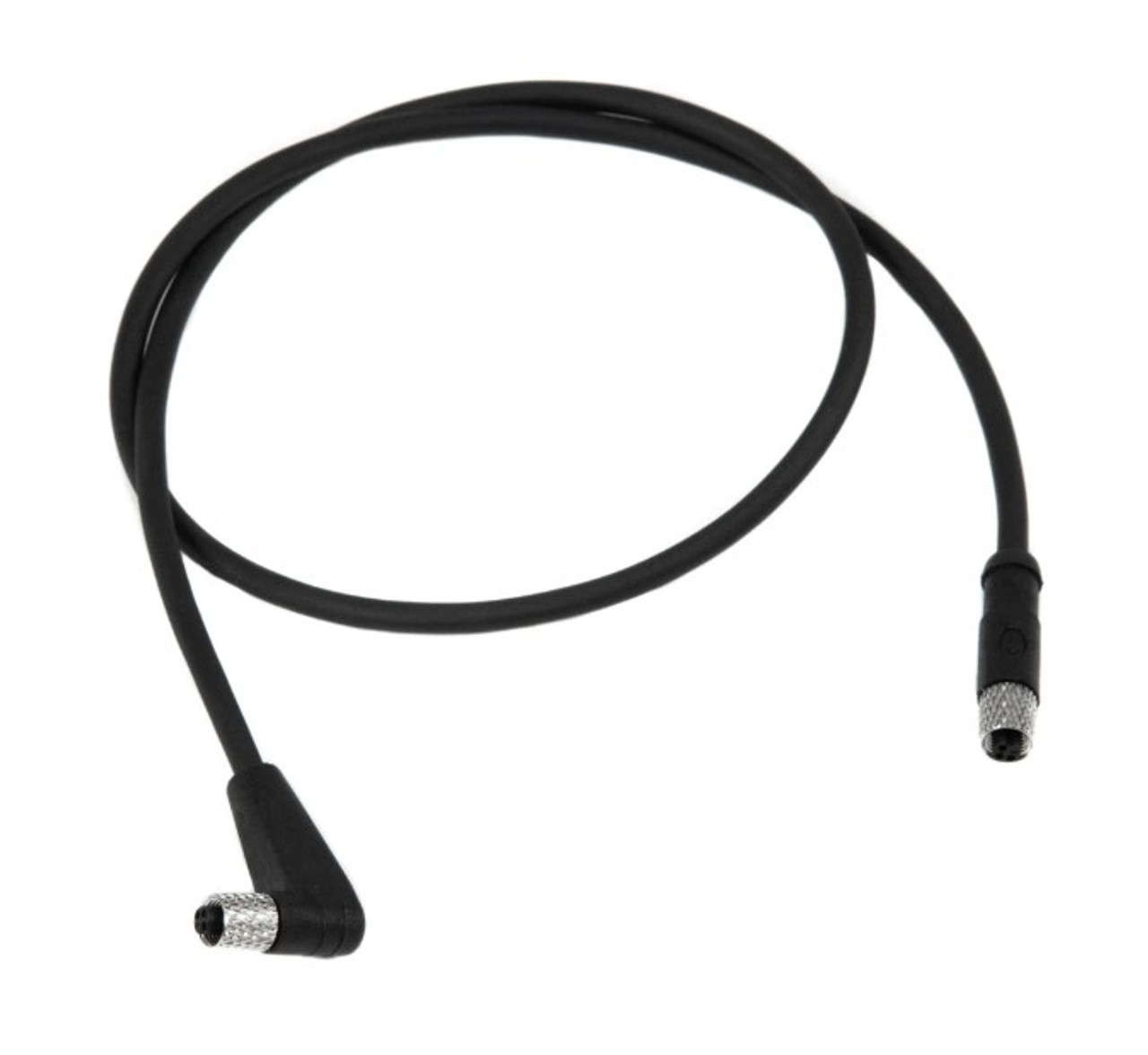

RIFE M5 Cable Straight/90° – 1.5 Feet
RIFE’s M5 cables provide a durable/sealed solution for connecting your RIFE sensors.
Simple screw-on attachment.
Hi-Temperature Polyurethane Jacket.
Straight/90° - both ends finished.
Connector OD: 0.250”, Cable Diameter: 0.160”
If removing or changing an end on this cable (to adapt to a non-standard m5 connector) the wire colors / pinouts are as follows, so long as you are using RIFE supplied M5 cables:
- Pin1 Brown: Signal Out
- Pin2 Black: Sensor Power
- Pin3 Blue: Sensor Ground
